有線LAN XOS

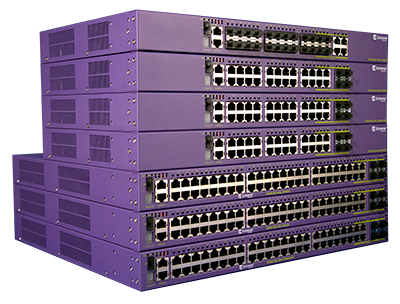

紫の遺伝子を引き継ぐ有線LANスイッチ

有線LAN XOS

製品仕様

  • Entry

    X435 Series

    X435 Series

  • Value

    X440-G2 Series / X450-G2 Series

    X440-G2 Series / X450-G2 Series

  • Mid-Tier

    X460-G2 Series

    X460-G2 Series

  • Premier

    X465 Series

    X465 Series

  • X435 Series

    Switch Hardware Ports
    X435-8T-4S
    • 8 x 10/100/1000BASE-T ports
      ・Full/Half-Duplex(auto-sensing)
    • 4 x 1/2.5GBASE-X SFP uplink ports*(unpopulated)
    • 1 x Serial(console port RJ-45)
    • 1 x USB A port for external USB flash
    X435-8P-4S
    • 8 x 10/100/1000BASE-T 802.3at(30W)PoE ports
      ・Full/Half-Duplex(auto-sensing)
    • 4 x 1/2.5GBASE-X SFP uplink ports*(unpopulated)
    • 1 x Serial(console port RJ-45)
    • 1 x USB A port for external USB flash
    X435-8P-2T-W
    • 8 x 10/100/1000BASE-T 802.3at(30W)access ports
      ・Full/Half-Duplex(auto-sensing)
    • 2 x 10/100/1000BASE-T 802.3bt Type 3/4(60W/90W)PoE ports
    • 1 x Serial(console port RJ-45)
    • 1 x USB A port for external USB flash
    X435-24T-4S
    • 24 x 10/100/1000BASE-T access ports
      ・Full/Half-Duplex(auto-sensing)
    • 4 x 1/2.5GBASE-X SFP uplink ports*(unpopulated)
    • 1 x Serial(console port RJ-45)
    • 1 x 10/100/1000BASE-T out-of-band management port
    • 1 x USB A port for external USB flash
    X435-24P-4S
    • 24 x 10/100/1000BASE-T access ports
      ・Full/Half-Duplex(auto-sensing)
    • 4 x 1/2.5GBASE-X SFP uplink ports*(unpopulated)
    • 1 x Serial(console port RJ-45)
    • 1 x 10/100/1000BASE-T out-of-band management port
    • 1 x USB A port for external USB flash

    *2.5Gb uplink support is a future capability

  • X440-G2 Series

    Switch Hardware Ports
    X440-G2-12t-10GE4
    • 12 x 10/100/1000BASE-T (RJ-45)
    • 4 x 1GBASE-X SFP (unpopulated front-panel ports) upgradeable to 10Gb Ethernet via licensing
    • 1 x Serial (console port RJ-45) with RTS/CTS modem control
    • 1 x 10/100/1000BASE-T out-of-band management port
    • Coaxial Barrel Connector RPS port
    X440-G2-24t-10GE4
    • 24 x 10/100/1000BASE-T (RJ-45)
    • 4 x 1GBASE-X SFP (unpopulated) combo ports
    • 4 x 1GBASE-X SFP (unpopulated rear-panel ports) upgradeable to 10Gb Ethernet via licensing
    • 1 x Serial (console port RJ-45) with RTS/CTS modem control
    • 1 x 10/100/1000BASE-T out-of-band management port
    • 2x7 RPS port
    X440-G2-48t-10GE4
    • 48 x 10/100/1000BASE-T (RJ-45)
    • 4 x 1GBASE-X SFP (unpopulated) combo ports
    • 2 x 1GbE copper combo ports upgradable to 10GbE on rear-panel
    • 4 x 1GBASE-X SFP (unpopulated rear-panel ports) upgradeable to 10Gb Ethernet via licensing
    • 1 x Serial (console port RJ-45) with RTS/CTS modem control
    • 1 x 10/100/1000BASE-T out-of-band management port
    • 2x7 RPS port
    X440-G2-12p-10GE4
    • 12 x 10/100/1000BASE-T PoE-Plus
    • 4 x 1GBASE-X SFP (unpopulated front-panel ports) upgradeable to 10Gb Ethernet via licensing
    • 1 x Serial (console port RJ-45) with RTS/CTS modem control
    • 1 x 10/100/1000BASE-T out-of-band management port
    • 2x7 RPS port
    X440-G2-24p-10GE4
    • 24 x 10/100/1000BASE-T PoE-Plus
    • 4 x 1GBASE-X SFP (unpopulated) combo ports
    • 4 x 1GBASE-X SFP (unpopulated rear-panel ports) upgradeable to 10Gb Ethernet via licensing
    • 1 x Serial (console port RJ-45) with RTS/CTS modem control
    • 1 x 10/100/1000BASE-T out-of-band management port
    • 2x7 RPS port
    X440-G2-48p-10GE4
    • 48 x 10/100/1000BASE-T PoE-Plus
    • 4 x 1GBASE-X SFP (unpopulated) combo ports
    • 2 x 1GbE copper combo ports upgradable to 10GbE on rear-panel
    • 4 x 1GBASE-X SFP (unpopulated rear-panel ports) upgradeable to 10Gb Ethernet via licensing
    • 1 x Serial (console port RJ-45) with RTS/CTS modem control
    • 1 x 10/100/1000BASE-T out-of-band management port
    • 2x9 RPS port
    X440-G2-24t-10GE4-DC
    • 24 x 10/100/1000BASE-T (RJ-45)
    • 4 x 1GBASE-X SFP (unpopulated) combo ports
    • 4 x 1GBASE-X SFP (unpopulated rear-panel ports) upgradeable to 10Gb Ethernet via licensing
    • 1 x Serial (console port RJ-45) with RTS/CTS modem control
    • 1 x 10/100/1000BASE-T out-of-band management port
    • 2x7 RPS port
    X440-G2-48t-10GE4-DC
    • 48 x 10/100/1000BASE-T (RJ-45)
    • 4 x 1GBASE-X SFP (unpopulated) combo ports
    • 2 x 1GbE copper combo ports upgradable to 10GbE on rear-panel
    • 4 x 1GBASE-X SFP (unpopulated rear-panel ports) upgradeable to 10Gb Ethernet via licensing
    • 1 x Serial (console port RJ-45) with RTS/CTS modem control
    • 1 x 10/100/1000BASE-T out-of-band management port
    • 2x7 RPS port
    X440-G2-24x-10GE4
    • 24 x SFP (unpopulated)
    • 4 x 10/100/1000 combo ports
    • 4 x 1GBASE-X SFP (unpopulated rear-panel ports) upgradeable to 10Gb Ethernet via licensing
    • 1 x Serial (console port RJ-45) with RTS/CTS modem control
    • 1 x 10/100/1000BASE-T out-of-band management port
    • 2x7 RPS port
    X440-G2-24fx-GE4
    • 24 x 100Base-FX – LC connectors
    • 4 x 1GBASE-X SFP (unpopulated front-panel ports)
    • 1 x Serial (console port RJ-45) with RTS/CTS modem control
    • 1 x 10/100/1000BASE-T out-of-band management port
    • 2x7 RPS port
    X440-G2-12t8fx-GE4
    • 12 x 10/100/1000BASE-T with 8 x 100Base-FX – LC connectors
    • 4 x 1GBASE-X SFP (unpopulated front-panel ports)
    • 1 x Serial (console port RJ-45) with RTS/CTS modem control
    • 1 x 10/100/1000BASE-T out-of-band management port
    • 2x7 RPS port
    X440-G2-24t-GE4
    • 24 x 10/100/1000BASE-T (RJ-45)
    • 4 x 1GBASE-X SFP (unpopulated rear-panel ports)
    • 1 x Serial (console port RJ-45) with RTS/CTS modem control
    • 1 x 10/100/1000BASE-T out-of-band management port
    • 2x7 RPS port

    X450-G2 Series

    Switch Hardware Ports
    X450-G2-24t-10GE4
    • 24 x 10/100/1000BASE-T (RJ-45)
    • 4 x 10GBASE-X SFP+ (unpopulated ports)
    • 1 x Serial (console port RJ-45) with RTS/CTS modem control
    • 1 x 10/100/1000BASE-T out-of-band management port
    • 1 x USB 2.0 port for external USB flash
    • 2 dedicated QSFP-form factor 21Gbps stacking ports on the rear panel
    X450-G2-48t-10GE4
    • 48 x 10/100/1000BASE-T (RJ-45)
    • 4 x 10GBASE-X SFP+ (unpopulated ports)
    • 1 x Serial (console port RJ-45) with RTS/CTS modem control
    • 1 x 10/100/1000BASE-T out-of-band management port
    • 1 x USB 2.0 port for external USB flash
    • 2 dedicated QSFP-form factor 21Gbps stacking ports on the rear panel
    X450-G2-24p-10GE4
    • 24 x 10/100/1000BASE-T PoE-Plus
    • 4 x 10GBASE-X SFP+ (unpopulated ports)
    • 1 x Serial (console port RJ-45) with RTS/CTS modem control
    • 1 x 10/100/1000BASE-T out-of-band management port
    • 1 x USB 2.0 port for external USB flash
    • 2 dedicated QSFP-form factor 21Gbps stacking ports on the rear panel
    X450-G2-48p-10GE4
    • 48 x 10/100/1000BASE-T PoE-Plus
    • 4 x 10GBASE-X SFP+ (unpopulated ports)
    • 1 x Serial (console port RJ-45) with RTS/CTS modem control
    • 1 x 10/100/1000BASE-T out-of-band management port
    • 1 x USB 2.0 port for external USB flash
    • 2 dedicated QSFP-form factor 21Gbps stacking ports on the rear panel
    X450-G2-24t-GE4
    • 24 x 10/100/1000BASE-T (RJ-45)
    • 4 x 1GBASE-X SFP (unpopulated ports)
    • 1 x Serial (console port RJ-45) with RTS/CTS modem control
    • 1 x 10/100/1000BASE-T out-of-band management port
    • 1 x USB 2.0 port for external USB flash
    • 2 dedicated QSFP-form factor 21Gbps stacking ports on the rear panel
    X450-G2-48t-GE4
    • 48 x 10/100/1000BASE-T (RJ-45)
    • 4 x 1GBASE-X SFP (unpopulated ports)
    • 1 x Serial (console port RJ-45) with RTS/CTS modem control
    • 1 x 10/100/1000BASE-T out-of-band management port
    • 1 x USB 2.0 port for external USB flash
    • 2 dedicated QSFP-form factor 21Gbp stacking ports on the rear panel
    X450-G2-24p-GE4
    • 24 x 10/100/1000BASE-T PoE-Plus
    • 4 x 1GBASE-X SFP (unpopulated ports)
    • 1 x Serial (console port RJ-45) with RTS/CTS modem control
    • 1 x 10/100/1000BASE-T out-of-band management port
    • 1 x USB 2.0 port for external USB flash
    • 2 dedicated QSFP-form factor 21Gbps stacking ports on the rear panel
    X450-G2-48p-GE4
    • 48 x 10/100/1000BASE-T PoE-Plus
    • 4 x 1GBASE-X SFP (unpopulated ports)
    • 1 x Serial (console port RJ-45) with RTS/CTS modem control
    • 1 x 10/100/1000BASE-T out-of-band management port
    • 1 x USB 2.0 port for external USB flash
    • 2 dedicated QSFP-form factor 21Gbps stacking ports on the rear panel

  • X460-G2 Series

    Switch Hardware Ports
    X460-G2-24t-10GE4
    • 24 x 10/100/1000BASE-T (RJ-45) - 4 ports are combo ports
    • 8 x 100/1000BASE-X (SFP) unpopulated ports – 4 ports are combo ports
    • 4 x 10GBASE-X SFP+ (unpopulated ports)
    • 1 x Serial (console port RJ-45)
    • 1 x 10/100/1000BASE-T out-of-band management port
    • 1 x USB port for external USB flash
    X460-G2-48t-10GE4
    • 48 x 10/100/1000BASE-T (RJ-45)
    • 4 x 10GBASE-X SFP+ (unpopulated ports)
    • 1 x Serial (console port RJ-45)
    • 1 x 10/100/1000BASE-T out-of-band management port
    • 1 x USB port for external USB flash
    X460-G2-24t-24ht-10GE4
    • 24 x 10/100/1000BASE-T Full-Duplex (RJ-45)
    • 24 x 10/100/1000BASE-T Full/Half-Duplex (RJ-45)
    • 4 x 10GBASE-X SFP+ (unpopulated ports)
    • 1 x Serial (console port RJ-45)
    • 1 x 10/100/1000BASE-T out-of-band management port
    • 1 x USB port for external USB flash
    X460-G2-24x-10GE4
    • 24 x 100/1000BASE-X (SFP) unpopulated ports – 4 ports are combo ports
    • 8 x 10/100/1000BASE-T (RJ-45) - 4 ports are combo ports
    • 4 x 10GBASE-X SFP+ (unpopulated ports)
    • 1 x Serial (console port RJ-45)
    • 1 x 10/100/1000BASE-T out-of-band management port
    • 1 x USB port for external USB flash
    X460-G2-48x-10GE4
    • 48 x 100/1000BASE-X (SFP) unpopulated ports
    • 4 x 10GBASE-X SFP+ (unpopulated ports)
    • 1 x Serial (console port RJ-45)
    • 1 x 10/100/1000BASE-T out-of-band management port
    • 1 x USB port for external USB flash
    X460-G2-24p-10GE4
    • 24 x 10/100/1000BASE-T PoE-Plus - 4 ports are combo ports
    • 8 x 100/1000BASE-X (SFP) unpopulated ports – 4 ports are combo ports
    • 4 x 10GBASE-X SFP+ (unpopulated ports)
    • 1 x Serial (console port RJ-45)
    • 1 x 10/100/1000BASE-T out-of-band management port
    • 1 x USB port for external USB flash
    X460-G2-48p-10GE4
    • 48 x 10/100/1000BASE-T PoE-Plus
    • 4 x 10GBASE-X SFP+ (unpopulated ports)
    • 1 x Serial (console port RJ-45)
    • 1 x 10/100/1000BASE-T out-of-band management port
    • 1 x USB port for external USB flash
    X460-G2-24p-24hp-10GE4
    • 24 x 10/100/1000BASE-T Full-Duplex PoE-Plus
    • 24 x 10/100/1000BASE-T Full/Half-Duplex PoE-Plus
    • 4 x 10GBASE-X SFP+ (unpopulated ports)
    • 1 x Serial (console port RJ-45)
    • 1 x 10/100/1000BASE-T out-of-band management port
    • 1 x USB port for external USB flash
    X460-G2-24t-GE4
    • 24 x 10/100/1000BASE-T (RJ-45) - 4 ports are combo ports
    • 8 x 100/1000BASE-X (SFP) unpopulated ports – 4 ports are combo ports
    • 4 1GBASE-X SFP (unpopulated ports)
    • 1 x Serial (console port RJ-45)
    • 1 x 10/100/1000BASE-T out-of-band management port
    • 1 x USB port for external USB flash
    X460-G2-24p-GE4
    • 24 x 10/100/1000BASE-T PoE-Plus - 4 ports are combo ports
    • 8 x 100/1000BASE-X (SFP) unpopulated ports – 4 ports are combo ports
    • 4 1GBASE-X SFP (unpopulated ports)
    • 1 x Serial (console port RJ-45)
    • 1 x 10/100/1000BASE-T out-of-band management port
    • 1 x USB port for external USB flash
    X460-G2-48p-GE4
    • 48 x 10/100/1000BASE-T PoE-Plus
    • 4 x 1GBASE-X SFP (unpopulated ports)
    • 1 x Serial (console port RJ-45)
    • 1 x 10/100/1000BASE-T out-of-band management port
    • 1 x USB port for external USB flash
    X460-G2-16mp-32p-10GE4
    • 16 x 100Mb/1/2.5GbE PoE-Plus
    • 132 x 10/100/1000BASE-T PoE-Plus
    • 14 x 10GBASE-X SFP+ (unpopulated ports)
    • 11 x Serial (console port RJ-45)
    • 11 x 10/100/1000BASE-T out-of-band management port
    • 11 x USB port for external USB flash
    X460-G2 VIM-2x 2 x 10GBASE-X SFP+ (unpopulated ports)
    X460-G2 VIM-2t 2 x 10GBASE-T Ports
    X460-G2 VIM-2ss 2 x SummitStack (CX4) Ports
    X460-G2 VIM-2q 2 x 40GBASE-X QSFP+ (unpopulated ports)
    X460-G2 TM-CLK Clock Module for SyncE and 1588 with 2 mini-BNC connectors for 10MHz and 1PPS signals

    NOTE: All X460-G2 switches have a USB 2.0 port that is supported as a port to a storage device with all EXOS versions of 22.1 or higher
    NOTE: The multi-rate ports do NOT support SynchE

  • X465 Series

    Switch Model Ports/Slots
    X465-24W
    • 24 x 10/100/lOOOBASE-T 802.3bt Type4 (90W) ports
      -Full / Half-Duplex
      -MACsec-capable
    • 2 x 40GBASE-X QSFP+ dedicated stacking ports (unpopulated) 1 x Serial console port (RJ-4S)
    • 1 x 10/100/lOOOBASE-T out-of-band management port
    • 1 x USB Micro-B console port
    • 2 x USB A ports for external USB flash
    • 1 x VIMS slot
    X465-48T
    • 48 x 10/100/lOOOBASE-T ports
      -Full / Half-Duplex
      -MACsec-capable
    • 2 x 40GBASE-X QSFP+ dedicated stacking ports (unpopulated) 1 x Serial console port (RJ-45)
    • 1 x 10/100/lOOOBASE-T out-of-band management port
    • 1 x USB Micro-B console port
    • 2 x USB A ports for external USB flash
    • 1 x VIMS slot
    X465-48P
    • 48 x 10/100/lOOOBASE-T 802.3at (30W) ports
      -Full / Half-Duplex
      -MACsec-capable
    • 2 x 40GBASE-X QSFP+ dedicated stacking ports (unpopulated) 1 x Serial console port (RJ-45)
    • 1 x 10/100/lOOOBASE-T out-of-band management port
    • 1 x USB Micro-B console port
    • 2 x USB A ports for external USB flash
    • 1 x VIMS slot
    X465-48W
    X465i-48W
    • 48 x 10/100/lOOOBASE-T 802.3bt (90W) ports
      -Full / Half-Duplex
      -MACsec-capable
    • 2 x 40GBASE-X QSFP+ dedicated stacking ports (unpopulated) 1 x Serial console port (RJ-45)
    • 1 x 10/100/lOOOBASE-T out-of-band management port
    • 1 x USB Micro-B console port
    • 2 x USB A ports for external USB flash
    • 1 x VIMS slot
    X465-24MU
    • 24 x lOOM/1/2.5/SGBASE-T 802.3bt Type3 (60W) ports
    • 2 x 40GBASE-X QSFP+ dedicated stacking ports (unpopulated) 1 x Serial console port (RJ-45)
    • 1 x 10/100/lOOOBASE-T out-of-band management port
    • 1 x USB Micro-B console port
    • 2 x USB A ports for external USB flash
    • 1 x VIMS slot
    X465-24MU
    • 24 x lOOM/1/2.5/SGBASE-T 802.3bt Type3 (60W) ports
    • 2 x 40GBASE-X QSFP+ dedicated stacking ports (unpopulated) 1 x Serial console port (RJ-45)
    • 1 x 10/100/lOOOBASE-T out-of-band management port
    • 1 x USB Micro-B console port
    • 2 x USB A ports for external USB flash
    • 1 x VIMS slot
    X465-24MU-24W
    • 24 x lOOM/1/2.5/SGBASE-T 802.3bt Type3 (60W) ports
    • 24 x 10/100/lOOOBASE-T 802.3bt Type4 (90W) ports
      - Full Duplex on lOOM/1/2.5/SGBASE-T ports
      - Full / Half-Duplex on 10/100/lOOOBASE-T ports
      - MACsec-capable
    • 2 x 40GBASE-X QSFP+ dedicated stacking ports (unpopulated) 1 x Serial console port (RJ-45)
    • 1 x 10/100/lOOOBASE-T out-of-band management port
    • 1 x USB Micro-B console port
    • 2 x USB A ports for external USB flash
    • 1 x VIMS slot
    X465-24S
    • 24 x 100/lOOOBase-X (SFP) ports (unpopulated)
    • 2 x 40GBase-X QSFP+ dedicated stacking ports (unpopulated) 1 x Serial console port (RJ-45)
    • 1 x 10/100/lOOOBase-T out-of-band management port
    • 1 x USB Micro-B console port
    • 2 x USB A ports for external USB flash
    • 1 x VIMS slot
    X465-24XE
    • 24 x 100M/1Gb/10Gb (SFP+) ports (unpopulated)
      - MACsec-Capable
      - LRM-Capable
    • 2 x 40GBase-X QSFP+ dedicated stacking ports (unpopulated) 1 x Serial console port (RJ-45)
    • 1 x 10/100/lOOOBase-T out-of-band management port
    • 1 x USB Micro-B console port
    • 2 x USB A ports for external USB flash
    • 1 x VIMS slot

Extreme Networks社製品に
関するお問い合わせはこちら
